Gas Assisted Spray Shapers


Flat Spray Shaper	Pin Point Spray Shaper	Wide Vortex Spray Shaper	Dove Tail Spray Shaper	Hypodermic Solution Delivery

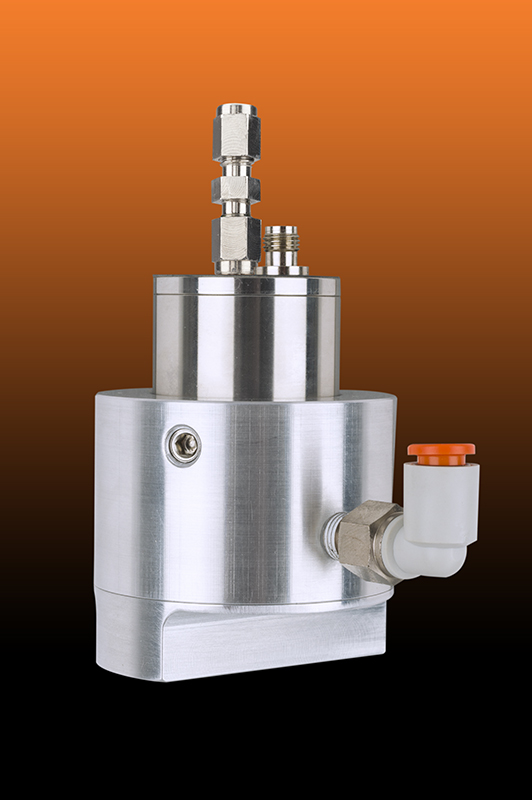

	Flat Spray Shaper for making square or rectangular spray coatings. Using a small gas pressure the FLSA will cause droplets to coat a substrate in a square, rectangular or flat spray area. Adjusting the height from the work surface and the gas pressure various size patterns can be made using the Sonaer atomizer nozzle. Technical data for the flat spray shaper can be found at the link FLSA A drawing is at the link Flat Spray Shaper
	Sonaer's Pin Point Spray Shaper interconnects with our NS series 60kHz or 130kHz atomizer nozzles. Along the side of the spray shaper is an air inlet port. Introducing a small gas or air into the the inlet port causes the droplets to be focused into a pin point spray pattern down to 250 microns at the focal point. Moving away from the part being sprayed will increase the spray width. This attachment is useful for coating small items with very little material being used, which can be expensive. The PPSA comes in light weight aluminum or 304 stainless steel. Part numbers are PPSA aluminum, PPSAS stainless steel. Technical data can be found at the following link PPSA A drawing of the Pin Point Spray Shaper can be found at the following link PPSA
	Sonaer has a gas assisted attachment for making the droplet spray width wider. The Wide Vortex Spray Shaper connects to the body of either our NS series 60kHz or 130kHz atomizer nozzle. With a small air or gas injected into the side port of the shaper, the gas will circulate inside and force the droplets to spread outward. Adjusting the gas flow, liquid flow rate and probe tip amplidude, wide spray patterns can be obtained up to 100 degrees. This attachment is perfect for coating large areas with little liquid flow and provides a uniform even coating on substrates. Technical data can be found at the following link WVSA. A drawing of the Wide Vortex Spray Shaper can be found at the following link WVSA

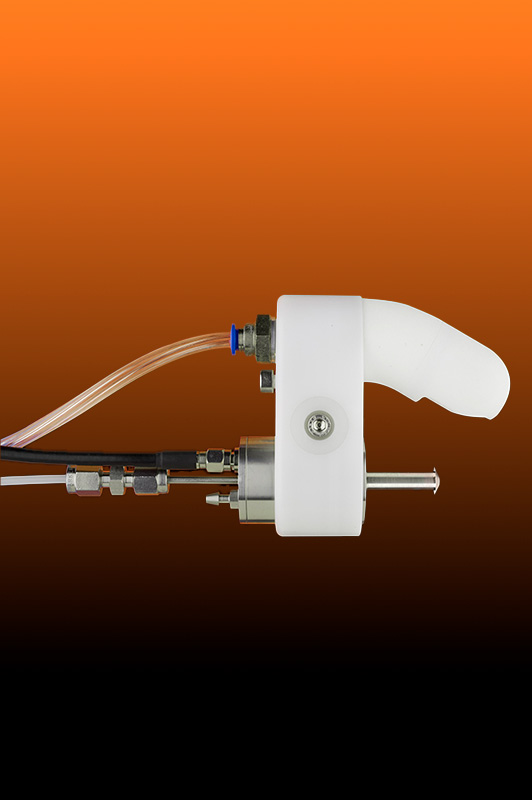

	The Dove Tail Spray Shaper is used with both NS and WS series atomizer nozzles. Nozzles are slipped into the shaper housing and the tip is positioned just below the bent portion of the dove tail. As the atomizer nozzle sprays the liquid, the air from the dove tail will spread the droplets over a greater area than the wide vortex type. By changing the position of the dove tail the spray diameter can be made oval. This shaper is ideal for large areas and flux coating printed circuit boards. Technical data can be found at the following link DTSA A drawing of the Dove Tail can be found at the following link DTSA
	The Hypodermic Spray Attachment is used for low volume of solutions deposited on the tip of the atomizer nozzle. As solutions are injected, droplets are formed on the tip of the atomizer nozzle and a small air or gas flow focuses the droplets onto small objects as medical stents, catheters, balloons. Hypo delivery can be made with up to 20 hypo needles surrounding the tip. For use with a single atomizer nozzle and multiple solutions. Technical data can be found at the following link HYPOSA A drawing of the Hypodermic Delivery Attachment can be found at the following link HYPOSA
