UltraSonic Coater
UltraSonic Coating System
1. Ultrasonic Spray Coater : Model No. SRC-3000U & SRC-5000U



ㅣ FEATURES

  •  XY Robot Motion syatem, UltraSonic Spray Nozzle & Generator, Liquid Pump, Touch Screen etc.
    -  Research & Development
    -  VMD Droplet Simulator for Generator & Display for Drop Size
    -  Nano Thin-Film Coating ( Solar Cell, Fuel Cell, Glass Plate, Mesh, Screen, Medical Coating etc )
    -  Divergent Natural Selection & Customising

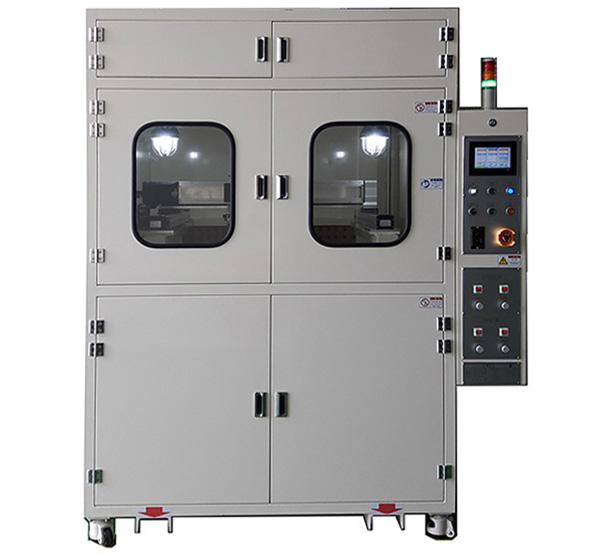

Stand Alone Type (SRC-5000U)



ㅣ Specifications

Model No. SRC-3000U SRC-4000U SRC-5000U(4500U)
Booth Type Bench-Top Type Stand Alone Type
Spray Type  Two-Axis Robot Motion, Fixed Plate, Pecision Spray
Display & Control 7" Full Color Touch Screen Panel
Generator Frequency 20㎑ ~ 130㎑
Ultrasonic Spray Nozzle Narrow, Wide, Extension, High Temp., Radial, Fluoropolymer etc.
Max. Spray Area 200㎜ x 200㎜ 300㎜ x 300㎜ 500㎜ x 500㎜
X-Y Robot Stoke 340㎜ x 340㎜ 450㎜ x 450㎜ 650㎜ x 650㎜
Z AXIS 150㎜ MANUAL(Optional : AUTOMATIC 100㎜)
X/Y축 Speed 5㎜/sec ~ 200㎜/sec 5㎜/sec ~ 500㎜/sec
Material Usage ratio >95%
Spray pattern Uniformity ±5%
도료공급방식 Precision Syringe Pump
Function Exhaust system interface
VMD Droplet Simulator ; Display for Drop Size
Power  220-240VAC, 50/60㎐, 단상, 16A
Dimension(㎜) 1000W x 700D x 622H 1100W x 820D x 622H 1650W x 1540D x 1950H
Weight 65㎏ 70㎏ 450㎏
Shaper 종류
(Attachment)		 Flat Spray shaper, Wide Vortex Spray Shaper, Pin Point Spray Shaper, Dove tail Spray Shaper
Option - Wide,Narrow, Radial, HT Nozzle & Multiple Nozzle
- Syringe Pump, Automatic Z-Axis, Heating & Vacuum Plate, TEMP/Humidity /Gas Tight Enclosure, Teflon coating, Auto (Un)Loading
- Size, Stroke, User Program, Customizing etc
